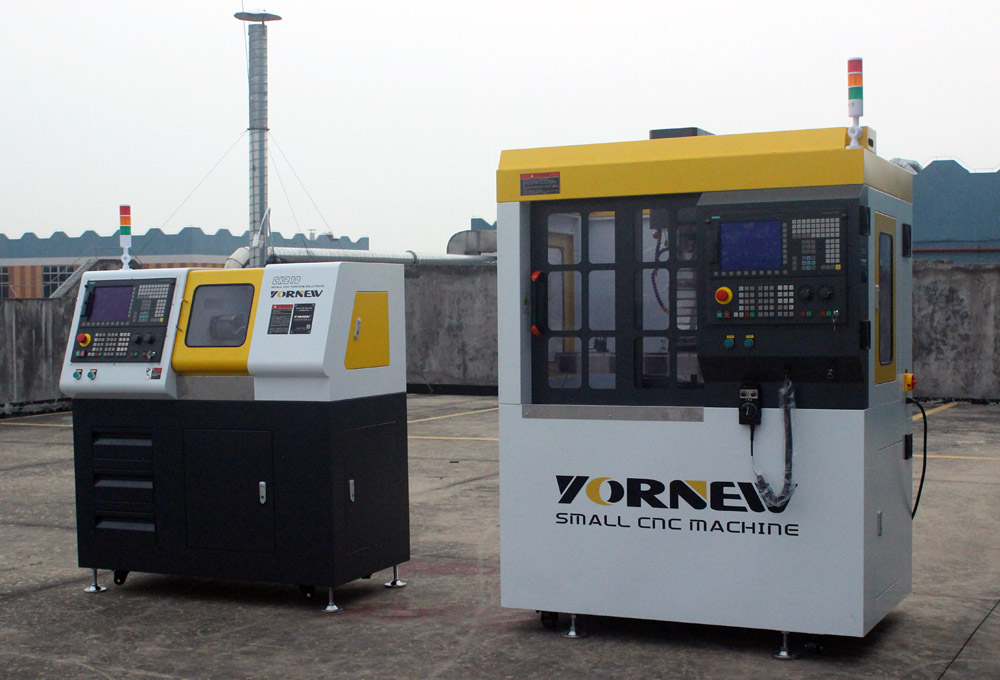

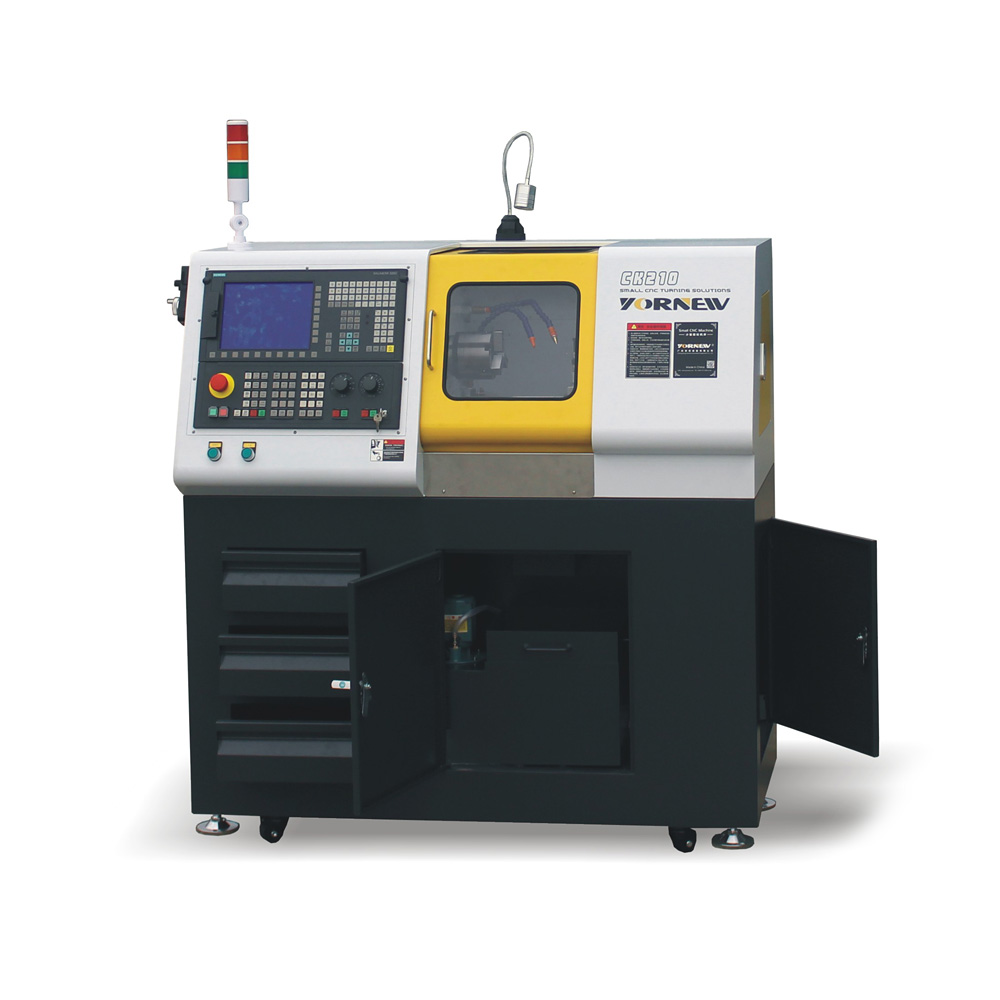

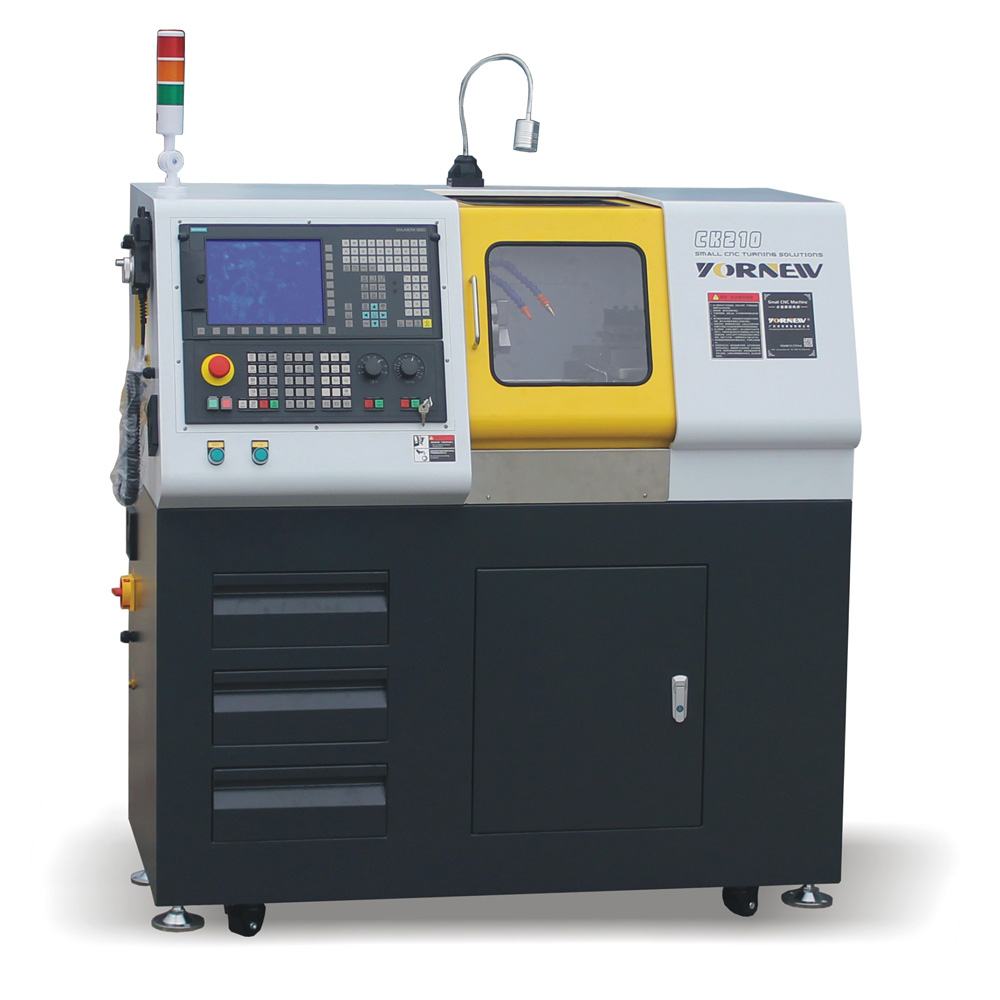

YORNEW CNC Lathe Compact Turn is a compact and versatile machine allowing precise and automated machining operations. It is a smaller version of traditional CNC lathes, designed to fit on a benchtop or desktop. these machines offer numerous benefits for hobbyists and machining professionals.

There are several advantages to using a mini CNC lathe. Firstly, its compact size makes it perfect for small workshops or home use where space may be limited. Additionally, these machines are user-friendly and require minimal manual intervention once programmed, saving time and effort.

A small CNC milling machine, like the YORNEW VMC300, is perfect for prototyping and small-scale production projects. Its compact size allows for easy setup in limited spaces while still maintaining high precision and power. With its versatile capabilities, you can quickly iterate designs and produce accurate parts in a cost-effective manner.

When it comes to choosing the right mini CNC lathe, several factors must be considered. First, you must determine what projects you will be working on and what materials you will be machining. Different lathes have different capabilities and specifications, so choosing one that aligns with your specific needs is important.

Technical parameters
Positioning accuracy: 0.02mm
Control system: SINUMERIK 828D
Automatic tool change system(ATC): 4 Tools
Turning diameter over bed(max): 210mm
Chuck diameter: 100mm
Spindle speed : 300-1800r/min
Spindle through-hole: 26mm
Spindle mount: MT4
Spindle motor power: 1100W
Work-piece cooling Water Cooled /29L
X axis travel: 90mm
Z axis travel: 300mm
X/Z axis motor: 400W Servo Motor
The max moving speed: 8000mm/min
The max feeding speed: 4000mm/min
Full cast iron: Full cast iron MPG handwheel: 4 axis
Tool dimension: 12×12mm
Tailstock taper: MT2
Tailstock sleeve diameter: 20mm
Travel of tailstock: 25mm
Power: 380VAC (3 Phase)
Weight(NW/GW):280/320KG
Overall dimension:1250×700×1300mm
Packing size:1400×860×1500mm
